Keycloak

Keycloak is an open source identity and access management tool that adds authentication to applications and secure services with minimum effort.

Using YugabyteDB as the database for Keycloak provides high availability, horizontal scalability, and global data distribution, making it ideal for large-scale, mission-critical identity systems.

Prerequisites

Before you start using Keycloak, ensure that you have the following:

OpenJDK 21.
The latest version of Keycloak.
A YugabyteDB cluster. Refer to YugabyteDB Quick start guide to install and start a local cluster.

Configure and start Keycloak

To configure Keycloak, do the following:

In YugabyteDB, create a database called keycloak on your cluster.
```
CREATE DATABASE keycloak;
```

Add the following configurations in the keycloak/conf/keycloak.conf file.

# The database vendor.
db=postgres

# The username of the database user.
db-username=yugabyte

# The password of the database user.
db-password=yugabyte

# The full database JDBC URL. If not provided, a default URL is set based on the selected database vendor.
db-url=jdbc:postgresql://localhost:5433/keycloak

Start Keycloak in the foreground using the following command:

$ ./bin/kc.sh start-dev

This may take some time. The server is ready when you see the following logs:

2025-06-18 12:43:11,631 INFO  [org.keycloak.quarkus.runtime.storage.infinispan.CacheManagerFactory] (main) Starting     Infinispan embedded cache manager
2025-06-18 12:43:11,691 INFO  [org.keycloak.quarkus.runtime.storage.infinispan.CacheManagerFactory] (main) JGroups     JDBC_PING discovery enabled.
2025-06-18 12:43:11,810 INFO  [org.infinispan.CONTAINER] (main) Virtual threads support enabled
2025-06-18 12:43:13,127 INFO  [org.infinispan.CONTAINER] (main) ISPN000556: Starting user marshaller 'org.infinispan.commons.marshall.ImmutableProtoStreamMarshaller'
2025-06-18 12:43:13,393 INFO  [org.keycloak.connections.infinispan.DefaultInfinispanConnectionProviderFactory] (main) Node name: node_759642, Site name: null
2025-06-18 12:43:13,705 INFO  [org.keycloak.services] (main) KC-SERVICES0050: Initializing master realm
2025-06-18 12:43:16,361 INFO  [io.quarkus] (main) Keycloak 26.2.5 on JVM (powered by Quarkus 3.20.1) started in 182.882s. Listening on: http://0.0.0.0:8080
2025-06-18 12:43:16,362 INFO  [io.quarkus] (main) Profile dev activated.
2025-06-18 12:43:16,362 INFO  [io.quarkus] (main) Installed features: [agroal, cdi, hibernate-orm, jdbc-postgresql,     keycloak, narayana-jta, opentelemetry, reactive-routes, rest, rest-jackson, smallrye-context-propagation, vertx]

The Keycloak server should be available at localhost:8080.

Verify the integration using ysqlsh

Run ysqlsh to connect to your database using the YSQL API as follows:
```
$ ./bin/ysqlsh
```

Connect to the keycloak database to verify it works as follows:

yugabyte=# \c keycloak

You are now connected to database "keycloak" as user "yugabyte".

keycloak=# \dt

                     List of relations
 Schema |             Name              | Type  |  Owner
--------+-------------------------------+-------+----------
 public | admin_event_entity            | table | yugabyte
 public | associated_policy             | table | yugabyte
 public | authentication_execution      | table | yugabyte
 public | authentication_flow           | table | yugabyte
 public | authenticator_config          | table | yugabyte
 public | authenticator_config_entry    | table | yugabyte
 public | broker_link                   | table | yugabyte
 public | client                        | table | yugabyte
 public | client_attributes             | table | yugabyte
 public | client_auth_flow_bindings     | table | yugabyte
 public | client_initial_access         | table | yugabyte
 public | client_node_registrations     | table | yugabyte
 public | client_scope                  | table | yugabyte
 public | client_scope_attributes       | table | yugabyte
 public | client_scope_client           | table | yugabyte
 public | client_scope_role_mapping     | table | yugabyte
 public | component                     | table | yugabyte
 public | component_config              | table | yugabyte
 public | composite_role                | table | yugabyte
 public | credential                    | table | yugabyte
 public | databasechangelog             | table | yugabyte
 public | databasechangeloglock         | table | yugabyte
 public | default_client_scope          | table | yugabyte
 public | event_entity                  | table | yugabyte
 public | fed_user_attribute            | table | yugabyte
 public | fed_user_consent              | table | yugabyte
 public | fed_user_consent_cl_scope     | table | yugabyte
 public | fed_user_credential           | table | yugabyte
 public | fed_user_group_membership     | table | yugabyte
 public | fed_user_required_action      | table | yugabyte
 public | fed_user_role_mapping         | table | yugabyte
 public | federated_identity            | table | yugabyte
 public | federated_user                | table | yugabyte
 public | group_attribute               | table | yugabyte
 public | group_role_mapping            | table | yugabyte
 public | identity_provider             | table | yugabyte
 public | identity_provider_config      | table | yugabyte
 public | identity_provider_mapper      | table | yugabyte
 public | idp_mapper_config             | table | yugabyte
 public | jgroups_ping                  | table | yugabyte
 public | keycloak_group                | table | yugabyte
 public | keycloak_role                 | table | yugabyte
 public | migration_model               | table | yugabyte
 public | offline_client_session        | table | yugabyte
 public | offline_user_session          | table | yugabyte
 public | org                           | table | yugabyte
 public | org_domain                    | table | yugabyte
 public | policy_config                 | table | yugabyte
 public | protocol_mapper               | table | yugabyte
 public | protocol_mapper_config        | table | yugabyte
 public | realm                         | table | yugabyte
 public | realm_attribute               | table | yugabyte
 public | realm_default_groups          | table | yugabyte
 public | realm_enabled_event_types     | table | yugabyte
 public | realm_events_listeners        | table | yugabyte
 public | realm_localizations           | table | yugabyte
 public | realm_required_credential     | table | yugabyte
 public | realm_smtp_config             | table | yugabyte
 public | realm_supported_locales       | table | yugabyte
 public | redirect_uris                 | table | yugabyte
 public | required_action_config        | table | yugabyte
 public | required_action_provider      | table | yugabyte
 public | resource_attribute            | table | yugabyte
 public | resource_policy               | table | yugabyte
 public | resource_scope                | table | yugabyte
 public | resource_server               | table | yugabyte
 public | resource_server_perm_ticket   | table | yugabyte
 public | resource_server_policy        | table | yugabyte
 public | resource_server_resource      | table | yugabyte
 public | resource_server_scope         | table | yugabyte
 public | resource_uris                 | table | yugabyte
 public | revoked_token                 | table | yugabyte
 public | role_attribute                | table | yugabyte
 public | scope_mapping                 | table | yugabyte
 public | scope_policy                  | table | yugabyte
 public | server_config                 | table | yugabyte
 public | user_attribute                | table | yugabyte
 public | user_consent                  | table | yugabyte
 public | user_consent_client_scope     | table | yugabyte
 public | user_entity                   | table | yugabyte
 public | user_federation_config        | table | yugabyte
 public | user_federation_mapper        | table | yugabyte
 public | user_federation_mapper_config | table | yugabyte
 public | user_federation_provider      | table | yugabyte
 public | user_group_membership         | table | yugabyte
 public | user_required_action          | table | yugabyte
 public | user_role_mapping             | table | yugabyte
 public | web_origins                   | table | yugabyte

Test Keycloak

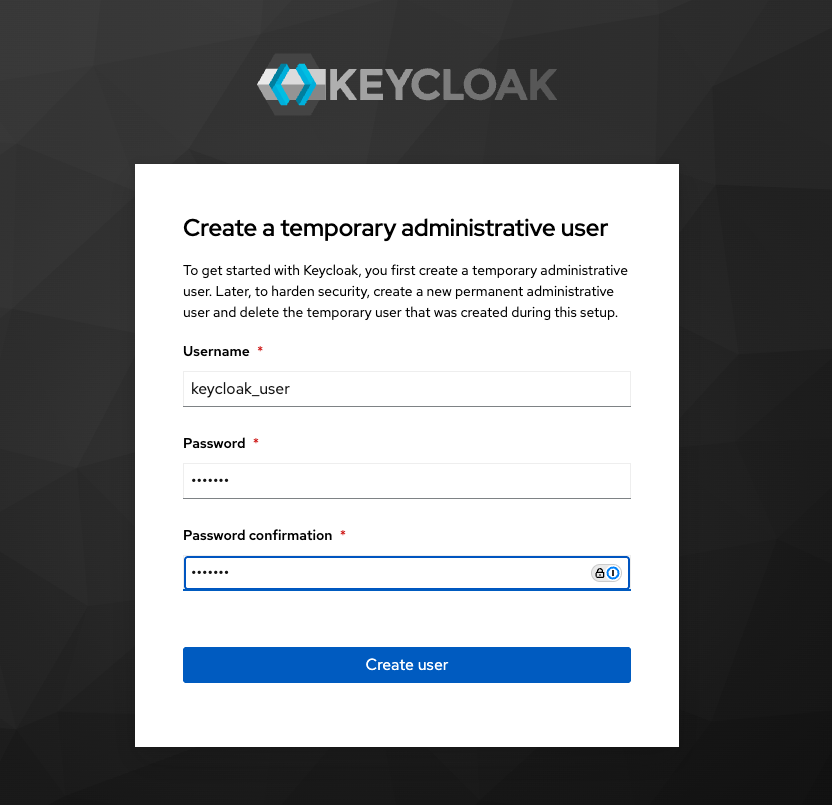

Navigate to localhost:8080 to access the dashboard to create a user.

Provide a username and password, and click Create user.

Keycloak creates the user.

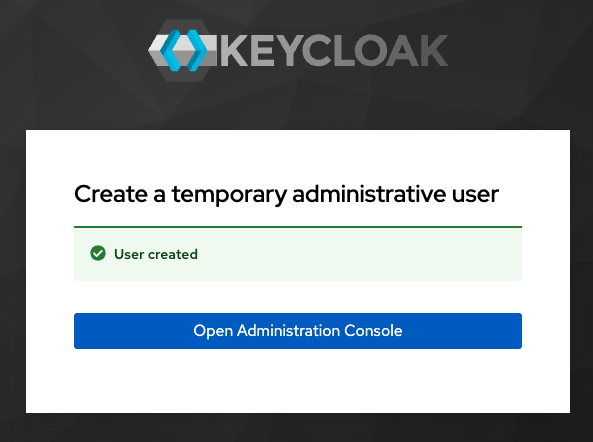

Keycloak Open Admin Console

You can also verify the user creation on your database as follows:

yugabyte=# \c keycloak

You are now connected to database "keycloak" as user "yugabyte".

keycloak=# SELECT id,username FROM user_entity;

                  id                  |   username
--------------------------------------+---------------
 5fa4b561-66e1-49ab-9a85-bbb4d6088f15 | keycloak_user
(1 row)

Click Open Administration Console.

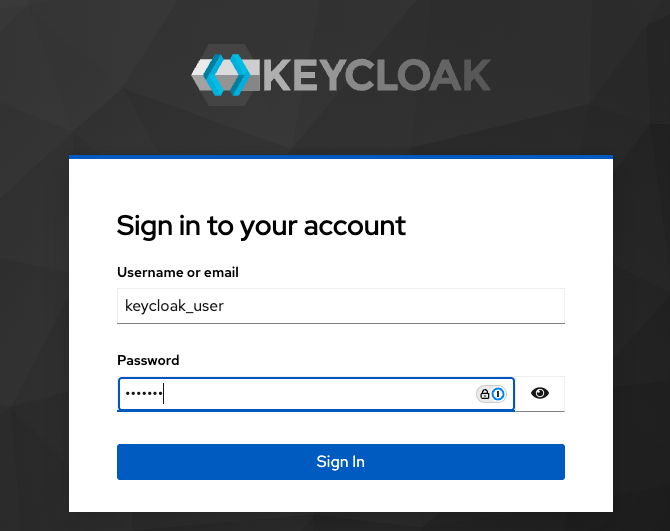

On the sign in page, enter the username and password you just created, and click Sign in.

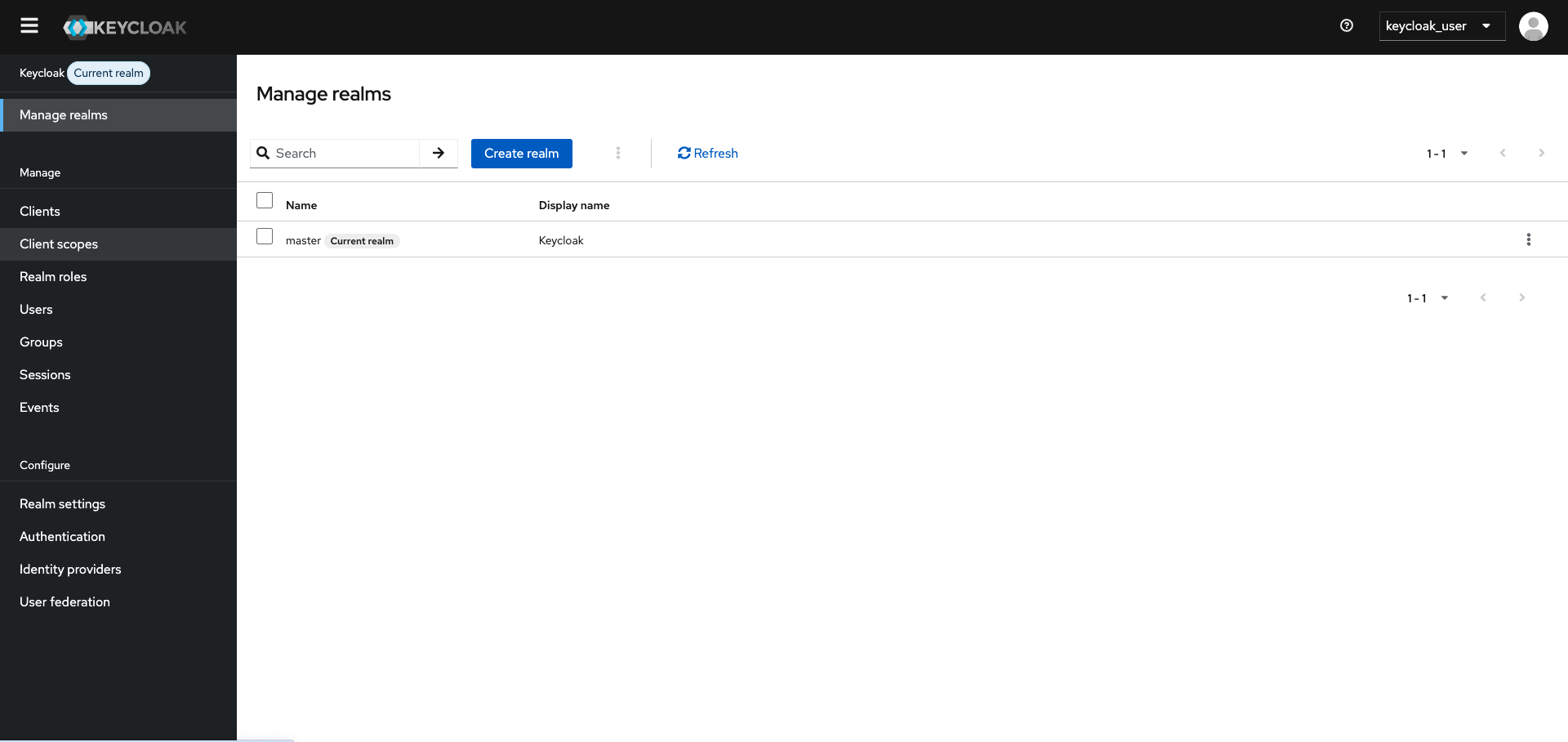

You are now signed in to the Keycloak dashboard.
