Create Kubernetes provider configuration

For deploying universes on Kubernetes

Before you can deploy universes to Kubernetes using YugabyteDB Anywhere (YBA), you must create a provider configuration.

Prerequisites

To deploy YugabyteDB universes on Kubernetes, you need to provide your Kubernetes provider credentials. YBA uses those credentials to automatically provision and de-provision the pods that run YugabyteDB.

Before you create a Kubernetes provider, perform the following:

Create a yugabyte-platform-universe-management service account.
Create a kubeconfig file of the service account you created to configure access to the Kubernetes cluster.

See To deploy nodes.

Configure Kubernetes

Navigate to Integrations > Infrastructure > Managed Kubernetes Service to see a list of all currently configured Kubernetes providers.

View and edit providers

To view a provider, select it in the list of Managed Kubernetes Service Configs to display the Overview.

To edit the provider, select Config Details, make changes, and click Apply Changes. For more information, refer to Provider settings. Note that, depending on whether the provider has been used to create a universe, you can only edit a subset of options.

To view the universes created using the provider, select Universes.

To delete the provider, click Actions and choose Delete Configuration. You can only delete providers that are not in use by a universe.

Create a provider

To create a Kubernetes provider:

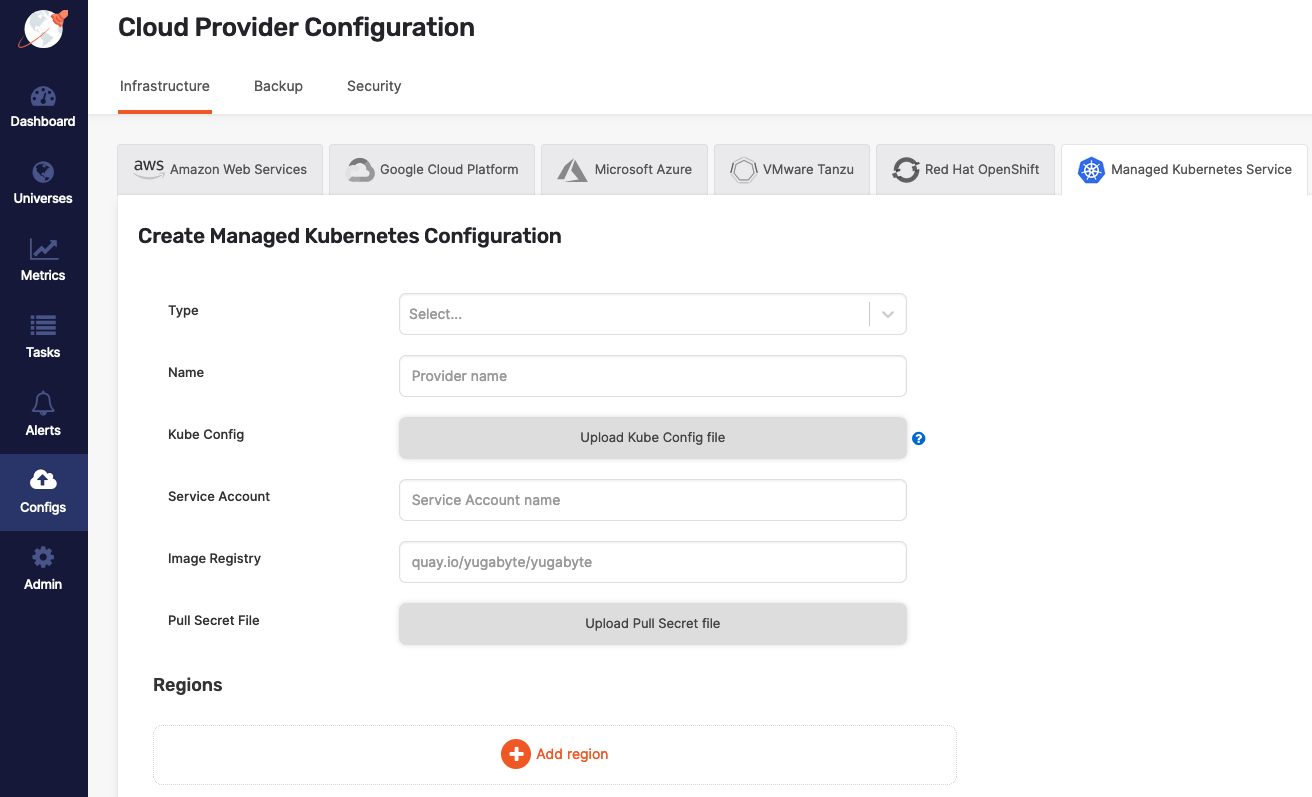

Click Create Config to open the Create Kubernetes Provider Configuration page.
Enter the provider details. Refer to Provider settings.

To fill the provider configuration values using the configuration of the same Kubernetes cluster that your instance of YBA is installed on, click Autofill local cluster config.
Click Validate and Save Configuration when you are done and wait for the configuration to validate and complete.

If you want to save your progress, you can skip validation by choosing the Ignore and save provider configuration anyway option, which saves the provider configuration without validating. Note that you may not be able to create universes using an incomplete or unvalidated provider.

Provider settings

Provider Name

Enter a Provider name. The Provider name is an internal tag used for organizing cloud providers.

Cloud Info

Choose the Kubernetes Provider Type.

In the Image Registry field, specify from where to pull the YugabyteDB image. Accept the default setting, unless you are hosting the registry, in which case refer to steps described in Pull and push YugabyteDB Docker images to private container registry.

Use Pull Secret to upload the pull secret to download the image of the Enterprise YugabyteDB that is in a private repository. Your Yugabyte sales representative should have provided this secret.

Use Kube Config to upload the kubeconfig file. If specified, this configuration file is used for all availability zones in all regions.

Alternately, you can define separate kubeconfig files for each zone when defining the regions. See Configure region and zones.

Configure region and zones

Continue configuring your Kubernetes provider by clicking Add region and completing the Add new region dialog as follows:

Use the Region field to select the region.
Click Add Zone and complete the corresponding portion of the dialog. Notice that there are might be multiple zones.
Use the Zone Code field to select a zone label that should match the value of failure domain zone label on the nodes. For example, topology.kubernetes.io/zone would place the pods in that zone.
Optionally, use Kube Config to upload the kubeconfig file. If this file is available at the provider level, you are not required to supply it.
Optionally, use the Storage Classes field to enter a comma-delimited value. If you do not specify this value, it would default to standard. You need to ensure that this storage class exists in your Kubernetes cluster. Refer to Hardware requirements for pods.
Optionally, use the Kube Pod Address Template field to enter the pod address template.
Optionally, in the Kube Domain field, provide the DNS domain name used in the Kubernetes cluster.
Use the Kube Namespace field to specify the namespace. If the provided service account has the Cluster Admin permissions, you are not required to complete this field. The service account used in the provided kubeconfig file should have access to this namespace.
Complete the Overrides field using one of the provided options. If you do not specify anything, YBA uses defaults specified inside the Helm chart. For additional information, see Open source Kubernetes.
If you are using Kubernetes cert-manager to manage TLS certificates, specify the issuer kind, enter the issuer name, and optionally provide the issuer group. For more information, refer to Add certificates.

If required, add a new zone by clicking Add Zone, as your configuration may have multiple zones.

Click Add Region when you are done.

Overrides

You can enter the following overrides.

Service-level annotations

Overrides to add service-level annotations:

serviceEndpoints:
  - name: "yb-master-service"
    type: "LoadBalancer"
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-internal: "0.0.0.0/0"
    app: "yb-master"
    ports:
      ui: "7000"

  - name: "yb-tserver-service"
    type: "LoadBalancer"
    annotations:
      service.beta.kubernetes.io/aws-load-balancer-internal: "0.0.0.0/0"
    app: "yb-tserver"
    ports:
      ycql-port: "9042"
      ysql-port: "5433"

Load balancer

Override to disable LoadBalancer:

enableLoadBalancer: False

Domain name

Override to change the cluster domain name:

domainName: my.cluster

YugabyteDB servers and other components communicate with each other using the Kubernetes Fully Qualified Domain Names (FQDN). The default domain is cluster.local.

StatefulSet

Overrides to add annotations at StatefulSet level:

networkAnnotation:
  annotation1: 'foo'
  annotation2: 'bar'

Resource allocation

Overrides to add custom resource allocation for YB-Master and YB-TServer pods:

resource:
  master:
    requests:
      cpu: 2
      memory: 2Gi
    limits:
      cpu: 2
      memory: 2Gi
  tserver:
    requests:
      cpu: 2
      memory: 4Gi
    limits:
      cpu: 2
      memory: 4Gi

This overrides instance types selected in the YBA universe creation flow.

Istio

Overrides to enable Istio compatibility:

istioCompatibility:
  enabled: true

This is required when Istio is used with Kubernetes.

Server broadcast address

Overrides to publish node IP as the server broadcast address.

By default, YB-Master and YB-TServer pod fully-qualified domain names (FQDN) are used in the cluster as the server broadcast address. To publish the IP addresses of the nodes on which YB-TServer pods are deployed, add the following YAML to each zone override configuration:

tserver:
  extraEnv:
  - name: NODE_IP
    valueFrom:
      fieldRef:
        fieldPath: status.hostIP
  serverBroadcastAddress: "$(NODE_IP)"
  affinity:
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchExpressions:
          - key: app
            operator: In
            values:
            - "yb-tserver"
        topologyKey: kubernetes.io/hostname

# Required to esure that the Kubernetes FQDNs are used for
# internal communication between the nodes and node-to-node
# TLS certificates are validated correctly

gflags:
  master:
    use_private_ip: cloud
  tserver:
    use_private_ip: cloud

serviceEndpoints:
  - name: "yb-master-ui"
    type: LoadBalancer
    app: "yb-master"
    ports:
      http-ui: "7000"

  - name: "yb-tserver-service"
    type: NodePort
    externalTrafficPolicy: "Local"
    app: "yb-tserver"
    ports:
      tcp-yql-port: "9042"
      tcp-ysql-port: "5433"

Run as non-root

Overrides to run YugabyteDB as a non-root user:

podSecurityContext:
  enabled: true
  ## Set to false to stop the non-root user validation
  runAsNonRoot: true
  fsGroup: 10001
  runAsUser: 10001
  runAsGroup: 10001

Note that you cannot change users during the Helm upgrades.

Tolerations

Overrides to add tolerations in YB-Master and YB-TServer pods:

## Consider the node has the following taint:
## kubectl taint nodes node1 dedicated=experimental:NoSchedule-

master:
  tolerations:
  - key: dedicated
    operator: Equal
    value: experimental
    effect: NoSchedule

tserver:
  tolerations: []

Tolerations work in combination with taints: taints are applied on nodes and tolerations are applied to pods. Taints and tolerations ensure that pods do not schedule onto inappropriate nodes. You need to set nodeSelector to schedule YugabyteDB pods onto specific nodes, and then use taints and tolerations to prevent other pods from getting scheduled on the dedicated nodes, if required. For more information, see Tolerations and Toleration API.

nodeSelector

Overrides to use nodeSelector to schedule YB-Master and YB-TServer pods on dedicated nodes:

## To schedule a pod on a node that has a topology.kubernetes.io/zone=asia-south2-a label

nodeSelector:
  topology.kubernetes.io/zone: asia-south2-a

For more information, see nodeSelector, and Kubernetes: Node Selector in the Kubernetes documentation.

Affinity

Overrides to add affinity in YB-Master and YB-TServer pods:

## To prevent scheduling of multiple master pods on single kubernetes node

master:
  affinity:
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
      - labelSelector:
          matchExpressions:
          - key: app
            operator: In
            values:
            - "yb-master"
        topologyKey: kubernetes.io/hostname

tserver:
  affinity: {}

Affinity allows the Kubernetes scheduler to place a pod on a set of nodes or a pod relative to the placement of other pods. You can use nodeAffinity rules to control pod placements on a set of nodes. In contrast, podAffinity or podAntiAffinity rules provide the ability to control pod placements relative to other pods. For more information, see Affinity API in the Kubernetes documentation.

Annotations

Overrides to add annotations to YB-Master and YB-TServer pods:

master:
  podAnnotations:
    application: "yugabytedb"

tserver:
  podAnnotations: {}

The Kubernetes annotations can attach arbitrary metadata to objects. For more information, see Annotations in the Kubernetes documentation.

Labels

Overrides to add labels to YB-Master and YB-TServer pods:

master:
  podLabels:
    environment: production
    app: yugabytedb
    prometheus.io/scrape: true

tserver:
  podLabels: {}

The Kubernetes labels are key-value pairs attached to objects. The labels are used to specify identifying attributes of objects that are meaningful and relevant to you. For more information, see Labels in the Kubernetes documentation.

Use common name with cert-manager

If your certificate issuer (for example, for aws-privateca-issuer) requires the certificate to include the common name, set the following override:

tls:
  certManager:
    certificates:
      commonNameRequired: true

Preflight check

Preflight check overrides, such as DNS address resolution, disk IO, available port, ulimit:

## Default values
preflight:
  ## Set to true to skip disk IO check, DNS address resolution, port bind checks
  skipAll: false

  ## Set to true to skip port bind checks
  skipBind: false

  ## Set to true to skip ulimit verification
  ## SkipAll has higher priority
  skipUlimit: false

For more information, see Helm chart: Prerequisites.

LDAP secret

Overrides to use a secret for LDAP authentication. Refer to Create secrets for Kubernetes.

Configure Kubernetes multi-cluster environment

If you plan to create multi-region YugabyteDB universes, you can set up Multi-Cluster Services (MCS) across your Kubernetes clusters. This section covers implementation specific details for setting up MCS on various cloud providers and service mesh tools.

YBA support for MCS is in Early Access

The Kubernetes MCS API is currently in alpha, though there are various implementations of MCS which are considered to be stable. To know more, see API versioning in the Kubernetes documentation.

MCS support in YBA is currently in Early Access. Keep in mind following caveats:

Universe metrics may not display correct metrics for all the pods.
xCluster replication needs an additional manual step to work on OpenShift MCS.
Yugabyte Support assistance is needed for upgrades.

Prepare Kubernetes clusters for GKE MCS

GKE MCS allows clusters to be combined as a fleet on Google Cloud. These fleet clusters can export services, which enables you to do cross-cluster communication. For more information, see Multi-cluster Services in the Google Cloud documentation.

To enable MCS on your GKE clusters, see Configuring multi-cluster Services. Note down the unique membership name of each cluster in the fleet, it will be used during the cloud provider setup in YBA.

Prepare OpenShift clusters for MCS

Red Hat OpenShift Container Platform uses the Advanced Cluster Management for Kubernetes (RHACM) and its Submariner add-on to enable MCS. At a very high level this involves following steps:

Create a management cluster and install RHACM on it. For details, see Installing Red Hat Advanced Cluster Management for Kubernetes in the Red Hat documentation.
Provision the OpenShift clusters which will be connected together. Ensure that the CIDRs mentioned in the cluster configuration file at networking.clusterNetwork, networking.serviceNetwork, and networking.machineNetwork are non-overlapping across the multiple clusters. You can find more details about these options in provider-specific sections under the OpenShift Container Platform installation overview (look for sections named "Installing a cluster on [provider name] with customizations").
Import the clusters into RHACM as a cluster set, and install the Submariner add-on on them. For more information, see Configuring Submariner.
Note down the cluster names from the cluster set, as these will be used during the cloud provider setup in YBA.

Prepare Kubernetes clusters for Istio multicluster

An Istio service mesh can span multiple clusters, which allows you to configure MCS. It supports different topologies and network configurations. To install an Istio mesh across multiple Kubernetes clusters, see Install Multicluster in the Istio documentation.

The Istio configuration for each cluster should have following options:

apiVersion: install.istio.io/v1alpha1
kind: IstioOperator
spec:
  meshConfig:
    defaultConfig:
      proxyMetadata:
        ISTIO_META_DNS_CAPTURE: "true"
        ISTIO_META_DNS_AUTO_ALLOCATE: "true"
  # rest of the configuration…

Refer to Multi-Region YugabyteDB Deployments on Kubernetes with Istio for a step-by-step guide and an explanation of the options being used.

Configure the provider configuration for MCS

After you have the cluster set up, follow the instructions in Create a provider, and refer to this section for region and zone configuration required for multi-region universes.

Configure region and zone for GKE MCS

Follow the steps in Configure region and zones and set values for all the zones from your Kubernetes clusters connected via GKE MCS as follows:

Specify fields such as Region, Zone, and so on as you would normally.
Set the Cluster DNS Domain to clusterset.local.
Upload the correct Kube Config of the cluster.
Set the Pod Address Template to {pod_name}.<cluster membership name>.{service_name}.{namespace}.svc.{cluster_domain}, where the <cluster membership name> is the membership name of the Kubernetes cluster set during the fleet setup.

Set the Overrides as follows:

multicluster:
  createServiceExports: true
  kubernetesClusterId: "<cluster membership name>"
  mcsApiVersion: "net.gke.io/v1"

For example, if your cluster membership name is yb-asia-south1, then the Add new region screen would look as follows:

Add new region screen of YBA with GKE MCS

Configure region and zones for OpenShift MCS

Follow the instructions in Create OpenShift provider configuration and Create a provider. For all the zones from your OpenShift clusters connected via MCS (Submariner), add a region as follows:

Specify fields such as Region, Zone, and so on as you would normally.
Set the Cluster DNS Domain to clusterset.local.
Upload the correct Kube Config of the cluster.
Set the Pod Address Template to {pod_name}.<cluster name>.{service_name}.{namespace}.svc.{cluster_domain}, where the <cluster name> is the name of the OpenShift cluster set during the cluster set creation.

Set the Overrides as follows:

multicluster:
  createServiceExports: true
  kubernetesClusterId: "<cluster name>"

For example, if your cluster name is yb-asia-south1, then the values will be as follows:

Pod Address Template {pod_name}.yb-asia-south1.{service_name}.{namespace}.svc.{cluster_domain}

Overrides

multicluster:
  createServiceExports: true
  kubernetesClusterId: "yb-asia-south1"

Configure region and zones for Istio

Follow the steps in Configure region and zones and set values for all the zones from your Kubernetes clusters connected via Istio as follows.

Specify fields such as Region, Zone, and so on as you would normally.
Upload the correct Kube Config of the cluster.
Set the Pod Address Template to {pod_name}.{namespace}.svc.{cluster_domain}.

Set the Overrides as follows:

istioCompatibility:
  enabled: true
multicluster:
  createServicePerPod: true
